Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-T38S-10P25S-1G
Document:

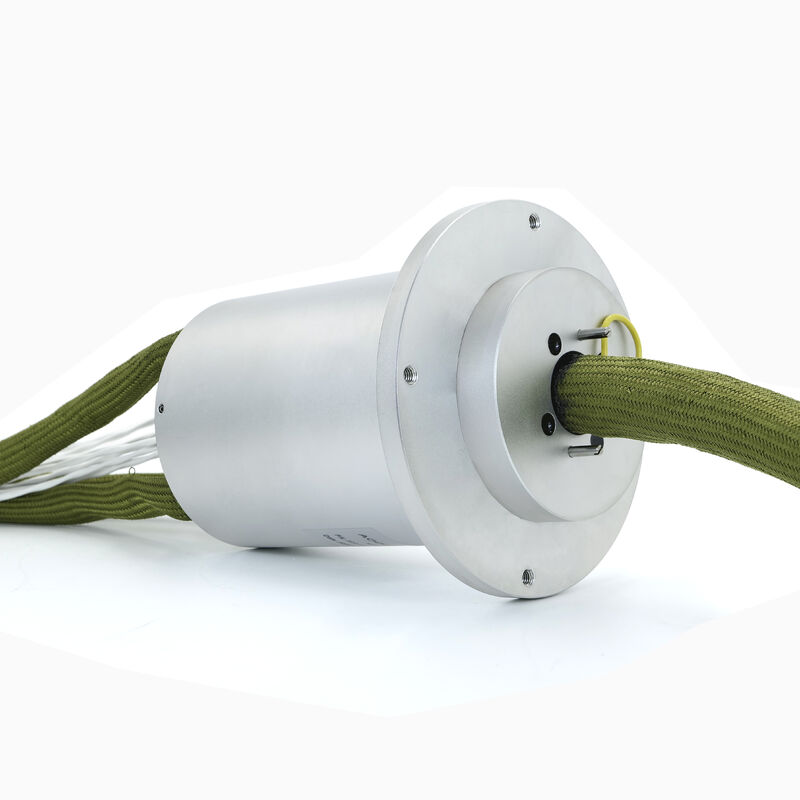

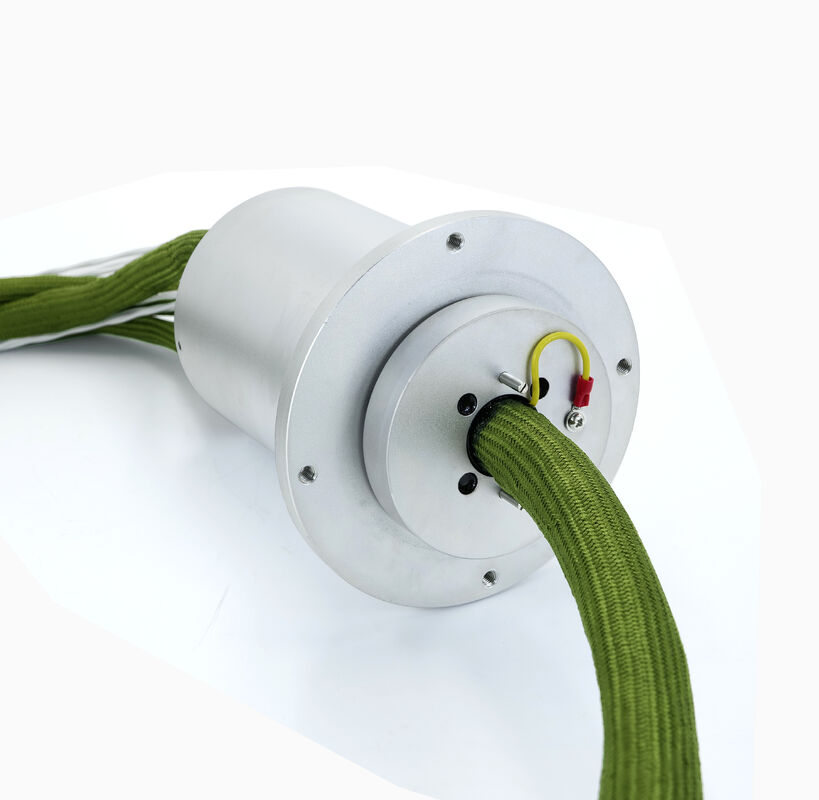

MIL-STD-461F, GigE, 120km/h Wind, 20°/s²: Military Slip Ring for EO/IR Gimbals
PSR-T38S-10P25S-1G
Drawing (Dimensions in millimeters)
Specifications
| Circuits | 10 for Power Transmission, 1 for Gigabit Ethernet Transmission, 22 for Signal Transmission |
| Electrical Specifications | |
| Current Rating | Power: 25A, Signal: 1A |
| Voltage Rating | 28VDC |
| Insulation Resistance | Max 200MΩ @ 500VDC |
| Electrical Noise | Max 40mΩ |
| Contact Resistance | Max 10mΩ |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Lead Cable | Teflon Wire(PTFE) |
| Mechanical Specifications | |
| Rotating Speed | 50rpm |
| Operating Temperature | -22℉ to +149℉ (-30℃ to +65℃) |
| Storage Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 1.0N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| EMI/EMC | MIL-STD-461F |
| Protection Degree | IP65(higher or lower on request) |
| Acceleration | 20°/s² |
| Wind operation | Up to 80km/hr |
| Survival | 120km/hr |
| Weight | 9kg |
