Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
Single Channel Wavguide Rotary Joint
Quick Selection Guide: Single-channel waveguide rotary Joints
| Model | Channels | Waveguide Interface | Frequency Range | VSWR max. dB |
Insertion Loss dB |
Type | OD × L in(mm) |
Speed rpm |
|---|---|---|---|---|---|---|---|---|
| RW1-F65WR15 | 1 | WR15 | 60-65GHz | 1.5 | 1 | L | 1.97 × 1.58 (50 × 40.14) |
20 |
| RW1-F36WR22 | 1 | WR22 | 33-36GHz | 1.5 | 0.5 | I | 0.65 × 22.81 (16.5 × 54.75) |
60 |
| RW1-F38WR22 | 1 | WR22 | 34-38GHz | 1.5 | 0.5 | U | 1.10 × 2.15 (28 × 54.7) |
60 |
| RW1-F38WR22A | 1 | WR22 | 34-38GHz | 1.5 | 0.5 | I | 1.14 × 0.44 (29 × 11.1) |
60 |
| RW1-F31WR28 | 1 | WR28 | 27.5-31GHz | 1.3 | 0.3 | L | 2.24 × 2.65 (57 × 67.3) |
300 |
| RW1-F26WR34 | 1 | WR34 | 24.45-26.3GHz | 1.2 | 0.3 | L | 1.97 × 2.28 (50 × 57.86) |
1.5 |
| RW1-F17WR51 | 1 | WR51 | 15.7-17.3GHz | 1.5 | 0.5 | I | 1.81 × 2.36 (45.9 × 60) |
20 |
| RW1-F15WR62 | 1 | WR62 | 13.7-15.8GHz | 1.25 | 0.3 | L | 1.97 × 1.50 (50 × 38) |
60 |

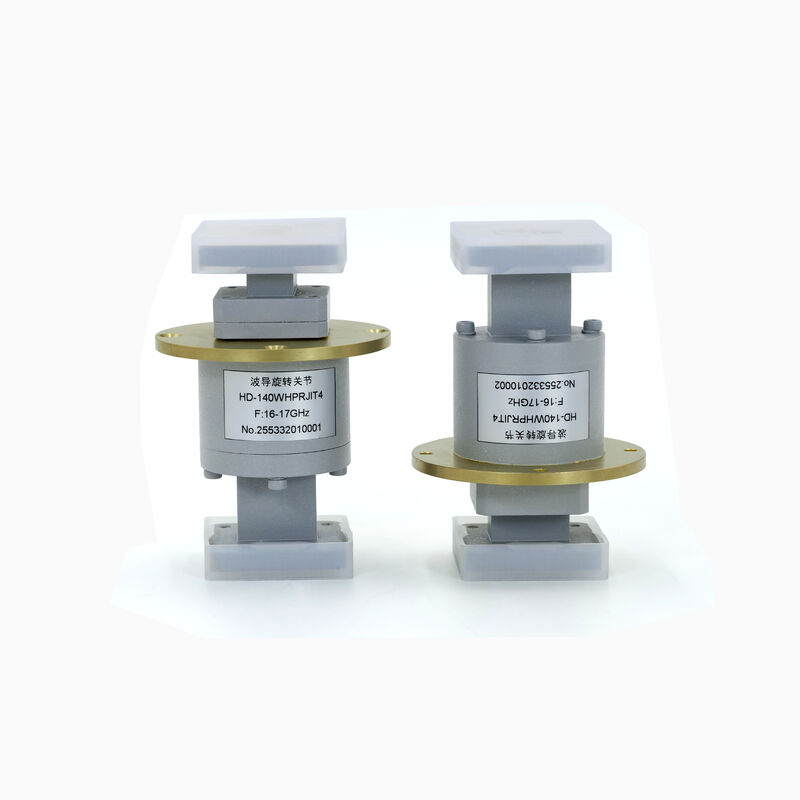

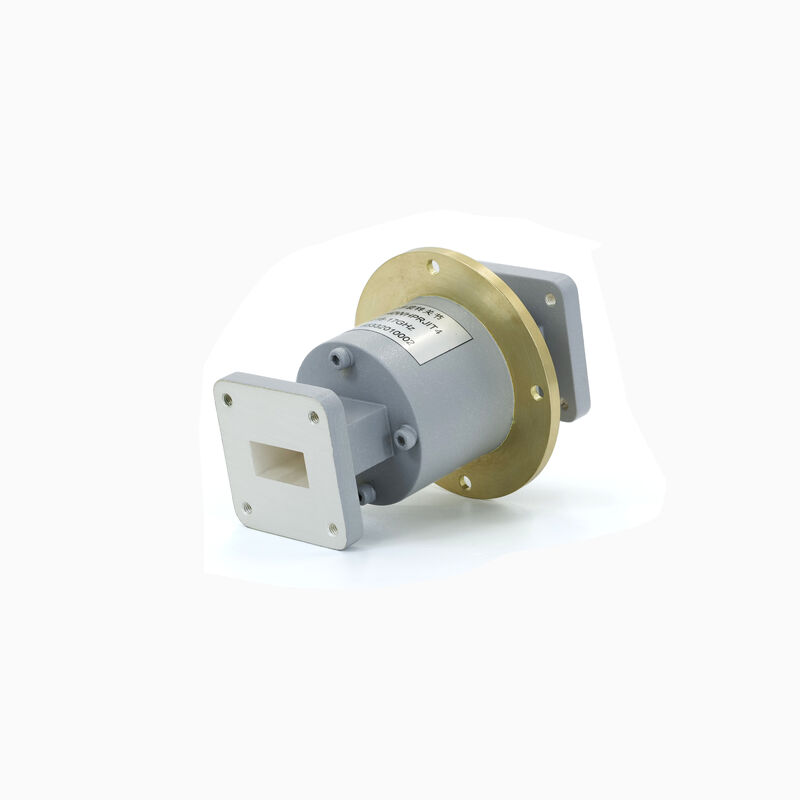

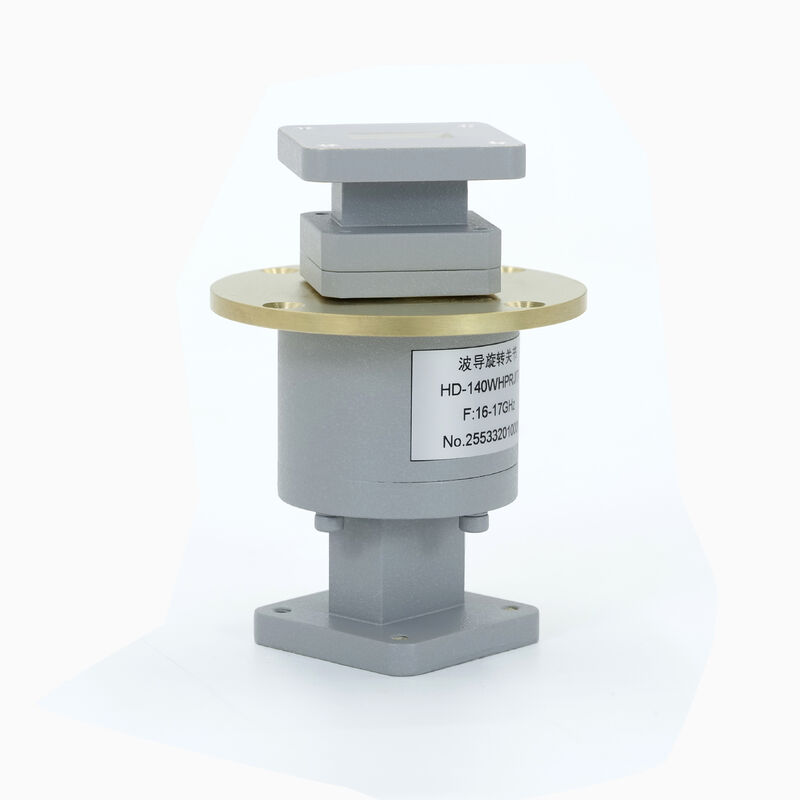

| RW1-F17WR62 | 1 | WR62 | 16-17GHz | 1.2 | 0.2 | I | 1.44 × 3.07 (36.5 × 78) |
60 |
| RW1-F14WR75-1 | 1 | WR75 | 13.75-14.5GHz | 1.2 | 0.2 | L | 1.97 × 2.52 (50 × 64) |
120 |
| RW1-F14WR75-2 | 1 | WR75 | 13.75-14.5GHz | 1.25 | 0.3 | L | 1.54 × 1.82 (39 × 46.24) |
120 |
| RW1-F14WR75-3 | 1 | WR75 | 13.75-14.5GHz | 1.25 | 0.3 | I | 1.81 × 2.39 (46 × 60.7) |
200 |
| RW1-F14WR75-4 | 1 | WR75 | 13.75-14.5GHz | 1.3 | 0.2 | L | 0.20 × 2.16 (54 × 54.8) |
200 |
| RW1-F14WR75-5 | 1 | WR75 | 13.75-14.5GHz | 1.4 | 0.6 | I | 2.36 × 1.0 (60 × 25.3) |
200 |
| RW1-F15WR75 | 1 | WR75 | 13-15GHz | 1.2 | 0.2 | I | 1.50 × 1.46 (38 × 37) |
60 |
| RW1-F10WR90-1 | 1 | WR90 | 8.5-10GHz | 1.2 | 0.2 | L | 3.0 × 3.21 (75 × 81.6) |
300 |
| RW1-F10WR90-2 | 1 | WR90 | 8.5-10GHz | 1.25 | 0.3 | I | 0.91 × 2.76 (23 × 70) |
60 |
| RW1-F10WR90-3 | 1 | WR90 | 9-10GHz | 1.3 | 0.4 | I | 2.09 × 2.76 (53 × 70) |
60 |
| RW1-F10WR90-4 | 1 | WR90 | 9.6-10.6GHz | 1.3 | 0.4 | I | 1.89 × 2.91 (48 × 74) |
30 |
| RW1-F5WR187-1 | 1 | WR187 | 5.2-5.8GHz | 1.3 | 0.3 | L | 4.72 × 2.28 (120 × 58) |
60 |
| RW1-F5WR187-2 | 1 | WR187 | 5.4-5.9GHz | 1.3 | 0.5 | U | 7.48 × 8.29 (190 × 210.6) |
60 |
| RW1-F2WR284 | 1 | WR284 | 2.856GHz | 1.2 | 0.3 | U | 5.91 × 12.08 (150 × 306.9) |
30 |
| RW1-F1WR510 | 1 | WR510 | 1.565-1.585GHz | 1.3 | 0.3 | I | 8.27 × 12.48 (210 × 317) |
30 |
