Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-HS-4P1E

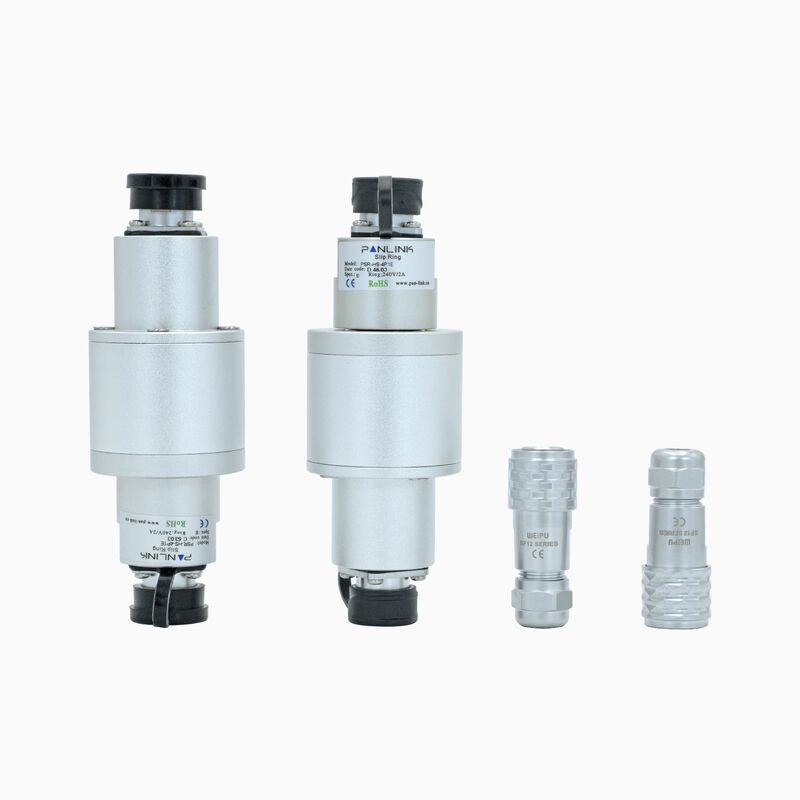

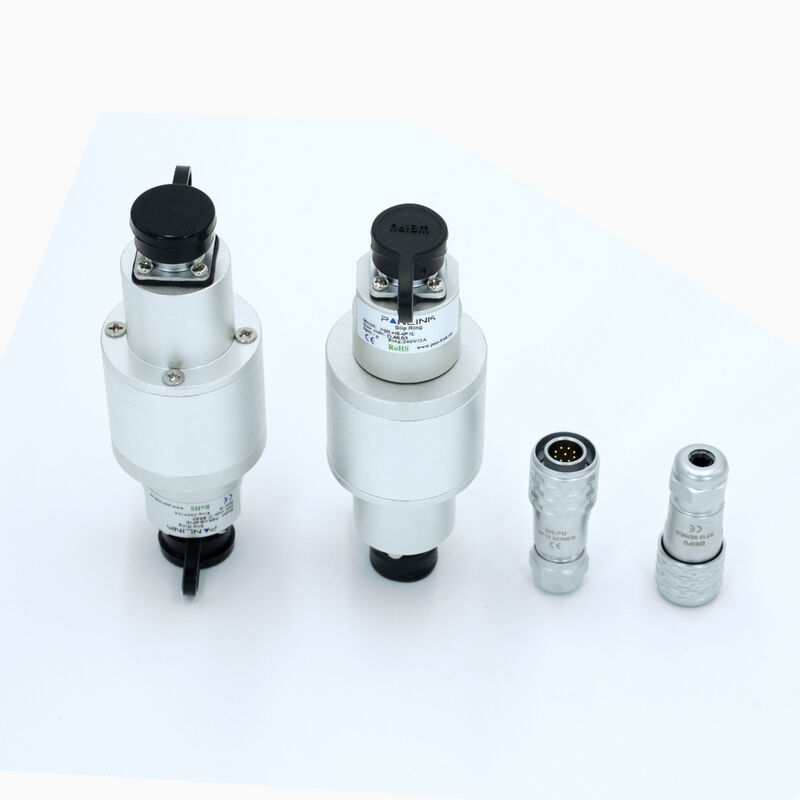

4 Power and 1 100M Ethernet Slip Ring with Al Alloy Housing
PSR-HS-4P1E
Dimensions in millimeters
Specification
| Channels | 4 for Power Transmission, 1 for 100BaseT Ethernet Transmission |
| Electrical Specifications | |
| Voltage Rating | 24VAC |
| Current Rating | Power: 4A |
| Insulation Resistance | Max 50MΩ @ 500VDC |
| Dielectric Noise | 200VAC @ 60Hz, 10s |
| Electric Noise | Max 10mΩ |
| Mechanical Specifications | |
| Working Life | 100 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -40℉ to +176℉ (-40℃ to +80℃) |
| Storage Temperature | -49℉ to +185℉ (-45℃ to +85℃) |
| Operating Humidity | 0~60%RH |
| Torque | 10N•cm |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
