Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-C60-2P24S-SDI-1G

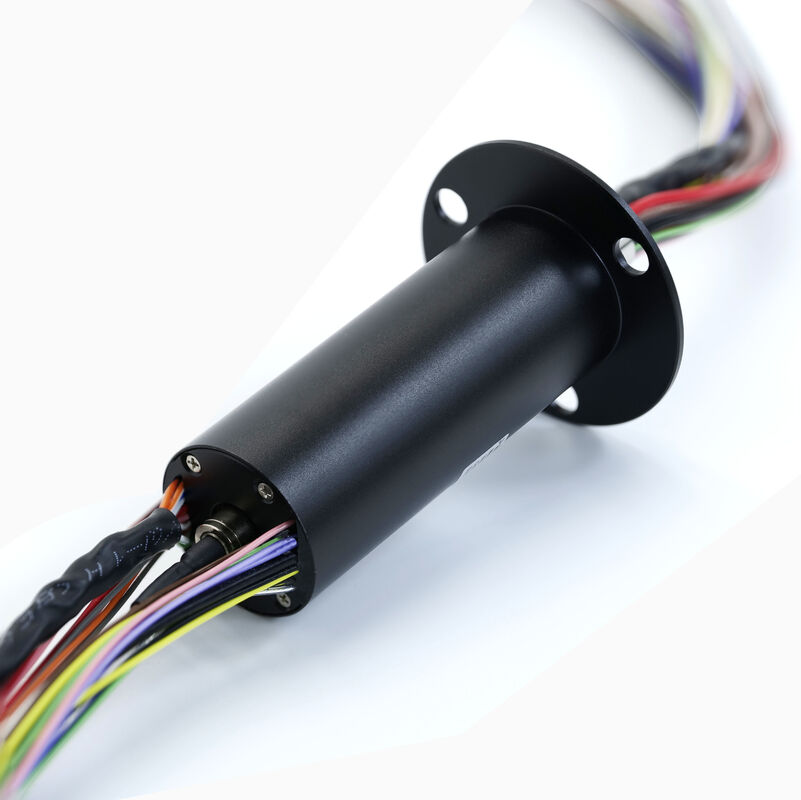

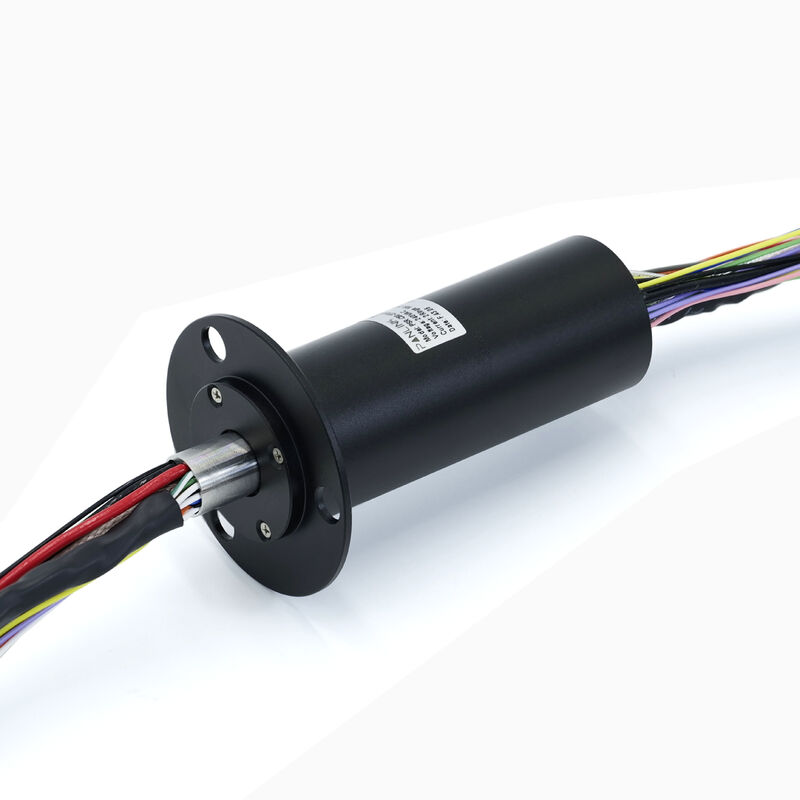

3G-SDI + GigE slip ring with dedicated RG179 & CAT6 channels for synchronized HD video & high-speed data
PSR-C60-2P24S-SDI-1G
Dimensions in millimeters
Specification
| Circuits | 1 Channel for 3G-SDI Transmission, 1 Channel for Gigabit Ethernet, 2 for Power Transmission, 24 for Signal Transmission |
| Electrical Specifications | |
| Frequency Rate | 3GHz SDI |
| Voltage Rating | 240VAC |
| Current Rating | Power: 10A, Signal: 2A |
| Insulation Resistance | Max 200MΩ @ 500VDC |
| Dielectric Noise | 500VAC @ 50Hz, 60s |
| Electric Noise | Max 40mΩ |
| Lead Cable | Power: AWG18 Teflon, Signal: AWG28 Teflon, Ethernet Channel: CAT6, 3g-SDI Channel: RG179 |
| Mechanical Specifications | |
| Working Life | 10 million revolutions |
| Rotating Speed | 300rpm |
| Operating Temperature | -67℉ to +160℉ (-55℃ to +71℃) |
| Storage Temperature | -67℉ to +176℉ (-55℃ to +80℃) |
| Operating Humidity | 0~95%RH |
| Torque | 0.2N•m |
| Contact Material | Precious Metal |
| Housing Material | Aluminum Alloy |
| Protection Degree | IP51(higher or lower on request) |
| Shock | GB/T 2423.5 (IEC 60068-2-27) |
| Vibration | GB/T 2423.10 (IEC 60068-2-6) |
