Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-T80-6P4S-RW

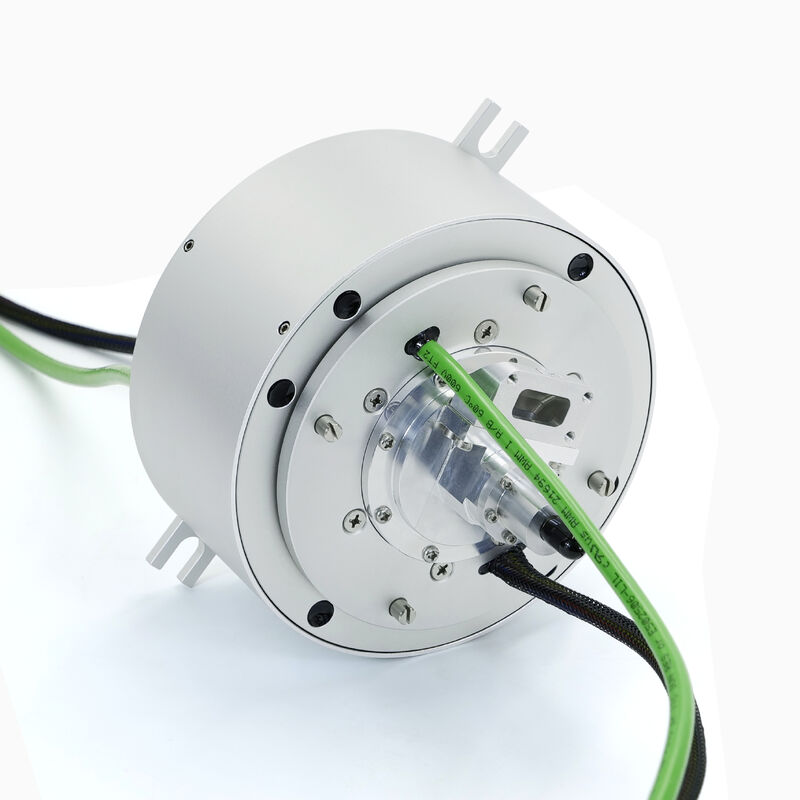

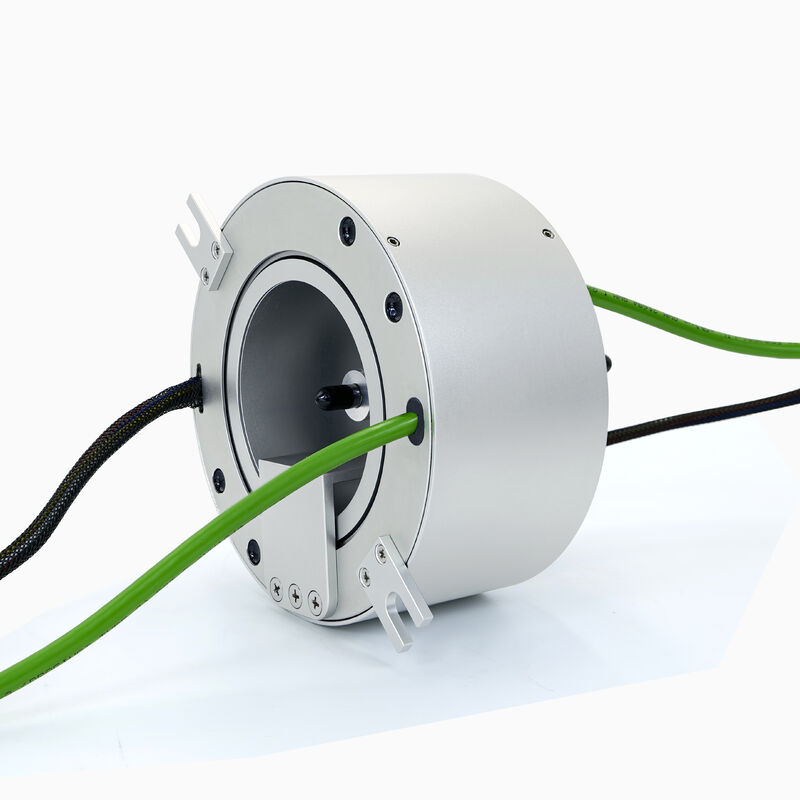

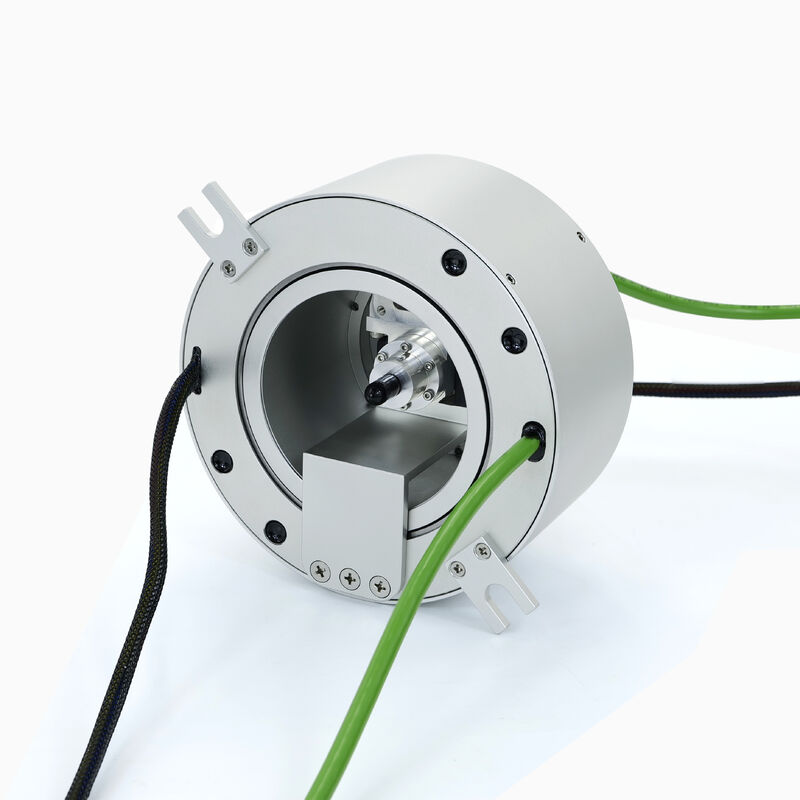

Waveguide-Coaxial Rotary Joint for Radar/SATCOM, Integrated Ethernet & Power Transmission
PSR-T80-6P4S-RW
Dimensions in millimeters
Specifications
| Circuits | 2 for RF Transmission, 1 for 100M Ethernet Transmission, 6 for Power Transmission | |
| RF Rotary Joint Specifications | ||
| RF Channels | Channel 1 | Channel 2 |
| Frequency Range | 13.75-14.5GHz | DC-18GHz |
| Connector Types | SMA-F | SMA-F |
| Insertion Loss Max.(dB) | 0.3 | 1.0 |
| Insertion Loss Ripple(dB) | 0.1 | 0.1 |
| VSWR | 1.3 | 1.6 |
| Isolation Min. (dB) | 60 | 60 |
| Average Power Max. | 300W @ 1GHz | 40W @ 2GHz |
| Electrical Specifications | ||
| Voltage Rating | 380VAC/VDC | |
| Current Rating | 10A(Power), 2A(Signal) | |
| Insulation Resistance | Max 500MΩ @ 500VDC | |
| Dielectric Noise | 500VAC @ 50Hz, 60s | |
| Electric Noise | Max 20mΩ | |
| Lead Cable | Teflon Wire(Power), CAT5(Ethernet) | |
| Mechanical Specifications | ||
| Rotating Speed | 300rpm | |
| Operating Temperature | -40℉ to +176℉(-40℃ to +80℃) | |
| Storage Temperature | -49℉ to +185℉(-45℃ to +85℃) | |
| Operating Humidity | 0~95%RH | |
| Torque | 0.2N•m | |
| Contact Material | Precious Metal | |
| Housing Material | Aluminum Alloy | |
| Protection Degree | IP51(higher or lower on request) | |
| Shock | GB/T 2423.5-2019(IEC 60068-2-27) | |
| Vibration | GB/T 2423.10-2019 (IEC 60068-2-6) | |
