Large Scale Electromechanical-System-Ready Large Slip Rings Capable Of Transferring Signal, Power, Water, Oil Or Gas
Large Size Slip Ring

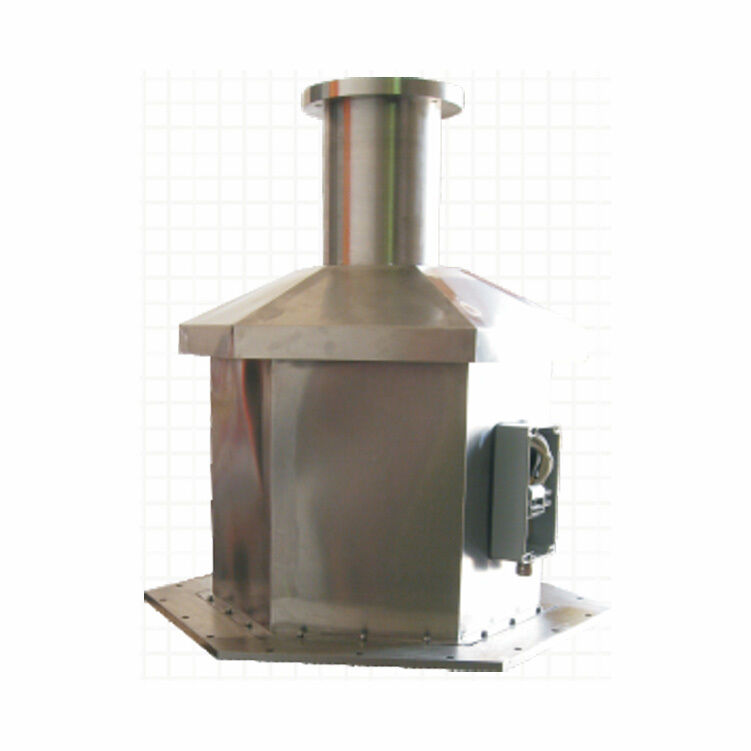

Large size slip ring is a series of slip rings with a size up to 3m, capable of transferring signal, power, water, oil or gas. For this series, waterproof feature is available as an option.
| Feature | Main Application |
| • Fiber brush contact | • Water treatment equipment |
| technology, multi-point contact | • Automobile production line |
• Low friction loss, long life | • Port machinery |
| Model | Rings | Current Rating | Voltage Rating | Size | Bore | Speed | |
| OD | L | ||||||
| PSR-T168-20 | 20 | 150 | 380 | 1060 | 168 | 300 | |
| PSR-TS85-30P3S | 33 | 130 | 500 | 1570 | 210 | 50 | |
| Remark: Customization is available for current, voltage, speed, power and data combinations. | |||||||
| Specification | |
| Voltage Rating | 380VAC |
| Current Rating | 150A/ring,500A/ring, 1000A/ring |
| Insulation Resistance | 1000MΩ @ 500VDC |
| Dielectric Strength | 600VDC@50Hz |
| Electrical Noise | 10mΩ@6VDC, 50mA, 5RPM |
| Rotating Speed, Max | 300rpm |
| Torque During Rotation, Max | 60 N*M |
| Protection Level | IP54 |
| Housing Material | Aluminum Alloy |
| Contact Material | Precious Metal |
| Lead Wires | Teflon Wires |
| Operation Temperature | -40℃~+80℃ |
| Mechanical Vibration | MIL-SID-810E |
| Relative Humidity | 60% |
PSR-T168-20 Dimensions
PSR-TS85-30P3S Dimensions
