RF Rotary Joint
RF rotary joints are electromechanical devices designed to transmit RF signals between a fixed platform and a rotating platform. They are essential components in various high-performance systems, including high-definition camera systems, defense radar systems, and satellite communications (SATCOM).
Panlink RF rotary joints are engineered with a compact design, ensuring low insertion loss, excellent voltage standing wave ratio (VSWR), minimal fluctuation of electrical characteristics, and high crosstalk attenuation across all channels and frequencies.
Our product range includes a variety of RF rotary joints to meet diverse application needs:

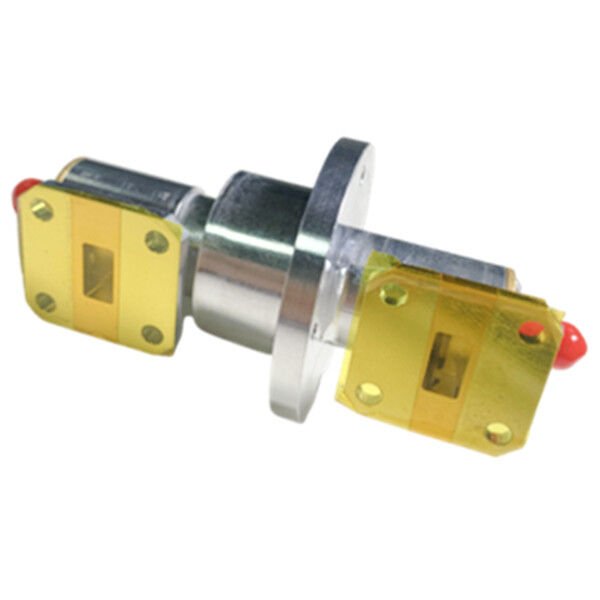

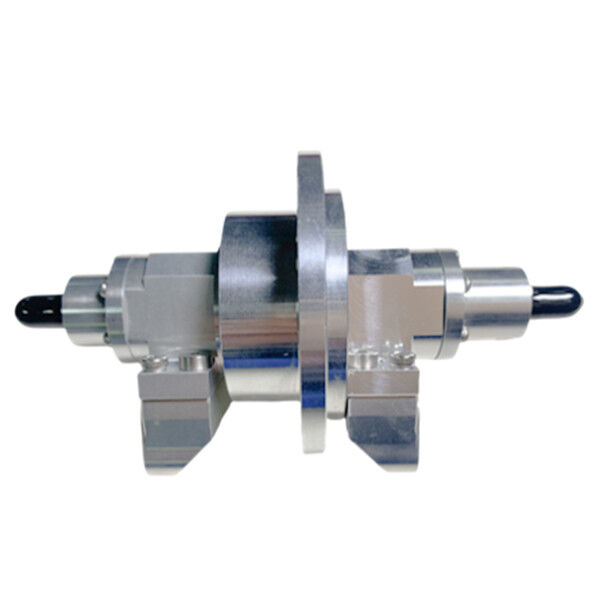

• Single Channel Waveguide Rotary Joint
| Model | RW01-501 |
| Interface Type | WR187 |
| Style | L |
| Frequency Range | 5.4 – 5.9 GHz |
| Peak Power, Max. | 250 KW |
| Average Power, Max. | 1000 W |
| VSWR, Max. | 1.25 |
| VSWR - WOW, Max. | 0.1 |
| Insertion Loss, Max. | 0.3 dB |
| Insertion Loss WOW, Max. | 0.05 dB |
| Rotating Speed, Max. | 60 rpm |
| Life Time, Min. | 50 million revolutions |
| Starting Torque, Max | 0.3 Nm @ room temperature |
| Housing Material | aluminum alloy |
| Housing Surface Finish | chromate conversion coat |
| Weight, Approx. | 1.5 Kg |
| Operating Temperature Range | -40 °C ~ +70 °C |
| Storage Temperature Range | -55 °C ~ +85 °C |
| Relative Humidity, Max. | 95% |
| Leakage max | 10 cm3//min |
| Protection Level | IP65 |
| Model | RW01-502 |
| Interface Type | WR187 |
| Style | U |
| Frequency Range | 5.4 – 5.9 GHz |
| Peak Power, Max. | 350 KW |
| Average Power, Max. | 1400 W |
| VSWR, Max. | 1.25 |
| VSWR - WOW, Max. | 0.1 |
| Insertion Loss, Max. | 0.3 dB |
| Insertion Loss WOW, Max. | 0.05 dB |
| Rotating Speed, Max. | 60 rpm |
| Life Time, Min. | 50 million revolutions |
| Starting Torque, Max | 0.3 Nm @ room temperature |
| Housing Material | aluminium alloy |
| Housing Surface Finish | chromate conversion coat |
| Weight, Approx. | 1.5 Kg |
| Operating Temperature Range | -40 °C ~ +70 °C |
| Storage Temperature Range | -55 °C ~ +85 °C |
| Relative Humidity, Max. | 95% |
| Leakage max | 10 cm3//min |
| Protection Level | IP65 |
| Model | RW01-503 |
| Interface Type | R140 |
| Style | I |
| Frequency Range | 14 – 14.5 GHz |
| Peak Power, Max. | 10 KW |
| Average Power, Max. | 10 W |
| VSWR, Max. | 1.2 |
| VSWR - WOW, Max. | 0.1 |
| Insertion Loss, Max. | 0.2 dB |
| Insertion Loss WOW, Max. | 0.05 dB |
| Rotating Speed, Max. | 120 rpm |
| Life Time, Min. | 50 million revolutions |
| Starting Torque, Max | 0.1 Nm @ room temperature |
| Housing Material | aluminum alloy |
| Housing Surface Finish | chromate conversion coat |
| Weight, Approx. | 0.4 Kg |
| Operating Temperature Range | -40 °C ~ +70 °C |
| Storage Temperature Range | -55 °C ~ +85 °C |
| Relative Humidity, Max. | 95% |
| Leakage max | 10 cm3//min |
| Protection Level | IP65 |

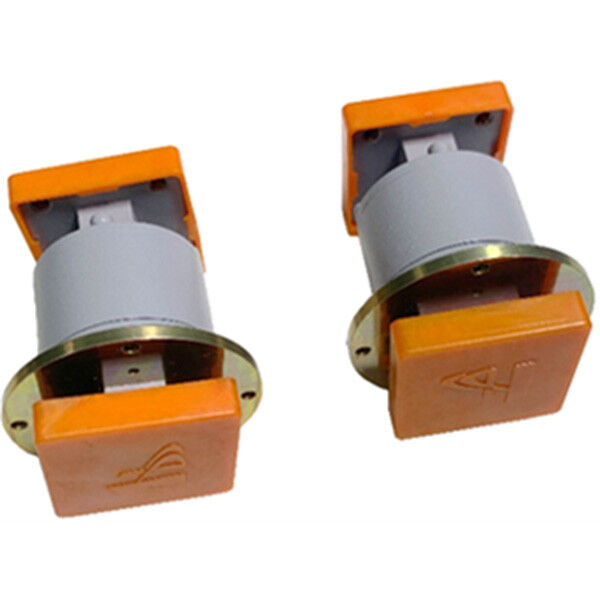

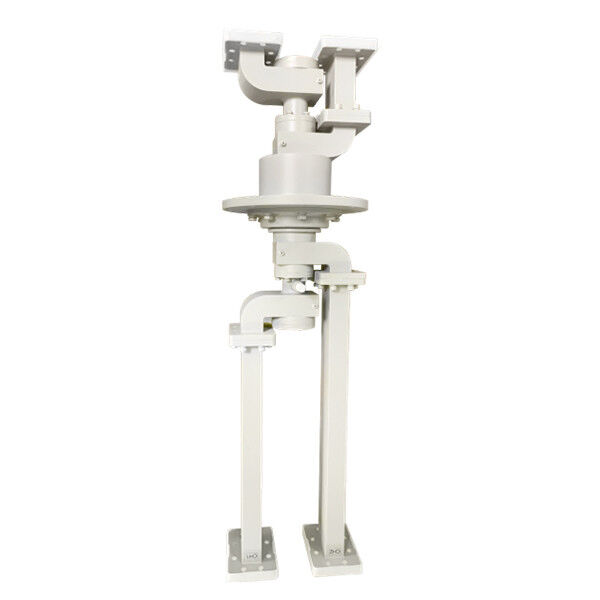

• Dual Channel Waveguide Rotary Joint
| Model | RW02-501A | |
| Channel | Channel 1 | Channel 2 |
| Interface Type | WR187 | WR187 |
| Style | I | I |
| Frequency Range | 5.4 – 5.9GHz | 5.4 – 5.9GHz |
| Peak Power, Max. | 350KW | 350KW |
| Average Power, Max. | 1400W | 1400W |
| VSWR, Max. | 1.2 | 1.2 |
| VSWR - WOW, Max. | 0.05 | 0.05 |
| Insertion Loss, Max. | 0.3dB | 0.3dB |
| Insertion Loss WOW, Max. | 0.05dB | 0.05dB |
| Isolation, Min. | 50dB | 50dB |
| Phase WOW, Max. | 1deg | 1deg |
| Rotating Speed, Max. | 60rpm | |
| Life Time, Min. | 50 million revolutions | |
| Starting Torque, Max | 0.3 Nm @ room temperature | |
| Torque during rotation, Max | 0.3 Nm @ room temperature | |
| Housing Material | aluminum alloy | |
| Housing Surface Finish | chromate conversion coat | |
| Weight, Approx. | 1.5Kg | |
| Operating Temperature Range | -40 °C ~ +70 °C | |
| Storage Temperature Range | -55 °C ~ +85 °C | |
| Relative Humidity, Max. | 95% | |
| Protection Level | IP65 | |

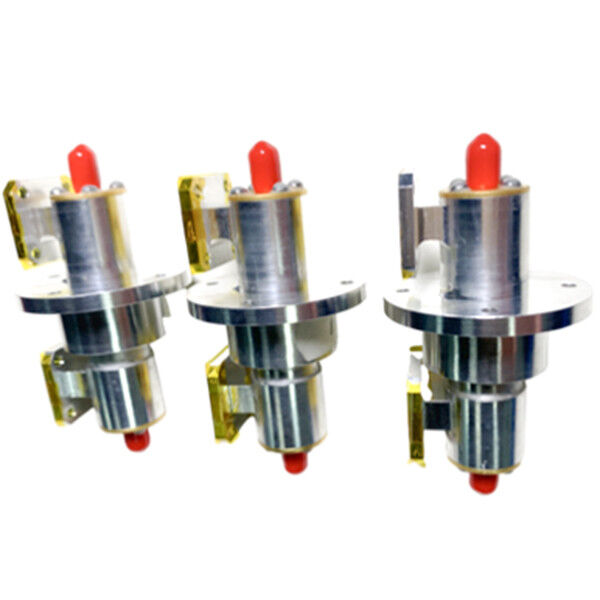

• 1 Channel Coax+1 Channel Waveguide Rotary Joint
| Model | HH02-501 | |
| Channel | Channel 1 | Channel 2 |
| Interface Type | R120 | SMA-F (50Ω) |
| Style | I | U |
| Frequency Range | 14.0 - 14.5 GHz | DC - 2.05 GHz |
| Peak Power, Max. | 10 KW | 100W |
| Average Power, Max. | 100 W | 10W |
| VSWR, Max. | 1.2 | 1.2 |
| VSWR - WOW, Max. | 0.1 | 0.05 |
| Insertion Loss, Max. | 0.2 dB | 0.4 dB |
| Insertion Loss WOW, Max. | 0.05 dB | 0.1 dB |
| Isolation, Min. | 60 dB | 60 dB |
| Rotating Speed, Max. | 60rpm | |
| Life Time, Min. | 5 million revolutions | |
| Starting Torque, Max | 0.2 Nm @ room temperature | |
| Housing Material | aluminum alloy | |
| Housing Surface Finish | chromate conversion coat | |
| Weight, Approx. | 320 g | |
| Operating Temperature Range | -40 °C ~ +70 °C | |
| Storage Temperature Range | -55 °C ~ +85 °C | |
| Relative Humidity, Max. | 95% | |
| Protection Level | IP64 | |
| Model | HH02-502 | |
| Channel | Channel 1 | Channel 2 |
| Interface Type | WR34 | SMA-F (50Ω) |
| Style | U | I |
| Frequency Range | 26.11 – 26.74GHz | DC - 2.05 GHz |
| Peak Power, Max. | 10 KW | 500W |
| Average Power, Max. | 200 W | 40W |
| VSWR, Max. | 1.35 | 1.4 |
| VSWR - WOW, Max. | 0.1 | 0.1 |
| Insertion Loss, Max. | 0.4 dB | 0.5 dB |
| Insertion Loss WOW, Max. | 0.1 dB | 0.1 dB |
| Isolation, Min. | 60 dB | 60 dB |
| Rotating Speed, Max. | 120rpm | |
| Life Time, Min. | 5 million revolutions | |
| Starting Torque, Max | 0.2 Nm @ room temperature | |
| Housing Material | aluminum alloy | |
| Housing Surface Finish | chromate conversion coat | |
| Weight, Approx. | 320 g | |
| Operating Temperature Range | -40 °C ~ +70 °C | |
| Storage Temperature Range | -55 °C ~ +85 °C | |
| Relative Humidity, Max. | 95% | |
| Protection Level | IP40 | |
| Model | HH02-503 | |
| Channel | Channel 1 | Channel 2 |
| Interface Type | WR28 | SMA-F (50Ω) |
| Style | U | I |
| Frequency Range | 26.11 – 26.74GHz | DC - 2.05 GHz |
| Peak Power, Max. | 10 KW | 500W |
| Average Power, Max. | 200 W | 40W |
| VSWR, Max. | 1.35 | 1.4 |
| VSWR - WOW, Max. | 0.1 | 0.1 |
| Insertion Loss, Max. | 0.4 dB | 0.5 dB |
| Insertion Loss WOW, Max. | 0.1 dB | 0.1 dB |
| Isolation, Min. | 60 dB | 60 dB |
| Rotating Speed, Max. | 120rpm | |
| Life Time, Min. | 5 million revolutions | |
| Starting Torque, Max | 0.2 Nm @ room temperature | |
| Housing Material | aluminum alloy | |
| Housing Surface Finish | chromate conversion coat | |
| Weight, Approx. | 320 g | |
| Operating Temperature Range | -40 °C ~ +70 °C | |
| Storage Temperature Range | -55 °C ~ +85 °C | |
| Relative Humidity, Max. | 95% | |
| Protection Level | IP40 | |

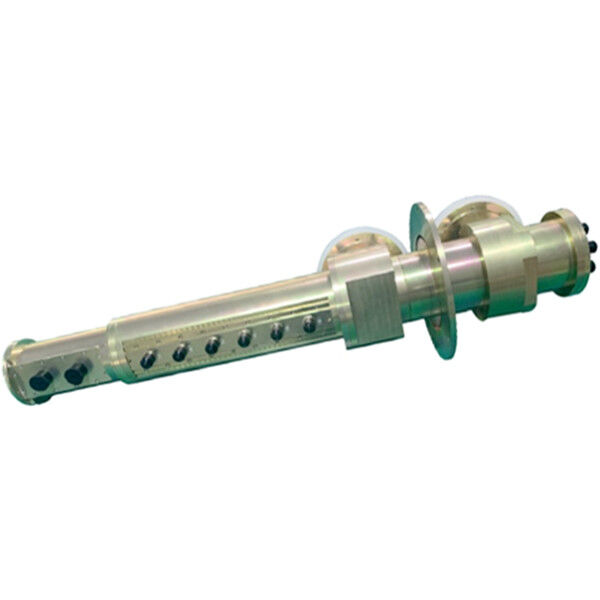

• 1 Channel Waveguide + Multi Coax Rotary Joint
| Model | RJ08-012 | |||||||
| Channel | Channel 1 | Channel 2 | Channel 3 | Channel 4 | Channel 5 | Channel 6 | Channel 7 | Channel 8 |
| Interface Type | UG-585/U | N-f | N-f | N-f | N-f | N-f | N-f | N-f |
| Style | U | L | L | L | L | L | L | I |
| Frequency Range(GHz) | 2.7-2.9 | 2.7-2.9 | 2.7-2.9 | 2.7-2.9 | 1 – 1.1G | 1 – 1.1G | 1 – 1.1G | 2.7-2.9 |
| Peak Power, Max. | 1MW | 2KW | 10KW | 10KW | 10KW | 10KW | 10KW | 10KW |
| Average Power, Max. | 4.5K W | 6 W | 30 W | 30 W | 300 W | 50 W | 50 W | 30 W |
| VSWR, Max. | 1.2 | 1.5 | 1.5 | 1.5 | 1.25 | 1.25 | 1.25 | 1.5 |
| VSWR - WOW, Max. | 0.05 | 0.05 | 0.05 | 0.05 | 0.08 | 0.08 | 0.08 | 0.05 |
| Insertion Loss, Max. | 0.2 dB | 1.3 dB | 1.3 dB | 1.25 dB | 0.75dB | 0.75dB | 0.75dB | 1.25 dB |
| Isolation, Min. | 50 dB | 50 dB | 50 dB | 50 dB | 50 dB | 50 dB | 50 dB | 50 dB |
| Phase WOW, Max. | 2 .5deg | 2 .5deg | 2 .5deg | 2 .5deg | 2 .5deg | 2 .5deg | 2 .5deg | 2 .5deg |
| Rotating Speed, Max. | 60 rpm | |||||||
| Life Time, Min. | 5 million revolutions or 50 millions for contactless type | |||||||
| Starting Torque, Max | 2N.m @ room temperature | |||||||
| Housing Material | aluminum alloy | |||||||
| Housing Surface Finish | chromate conversion coat | |||||||
| Weight, Approx. | 30 kg | |||||||
| Operating Temperature Range | -40 °C ~ +70 °C | |||||||
| Storage Temperature Range | -55 °C ~ +85 °C | |||||||
| Relative Humidity, Max. | 95% | |||||||
| Protection Level | IP65 | |||||||
