Place of Origin:
China
Brand Name:
Panlink
Certification:
ISO 9001: 2015, CE
Model Number:
PSR-JC34-120

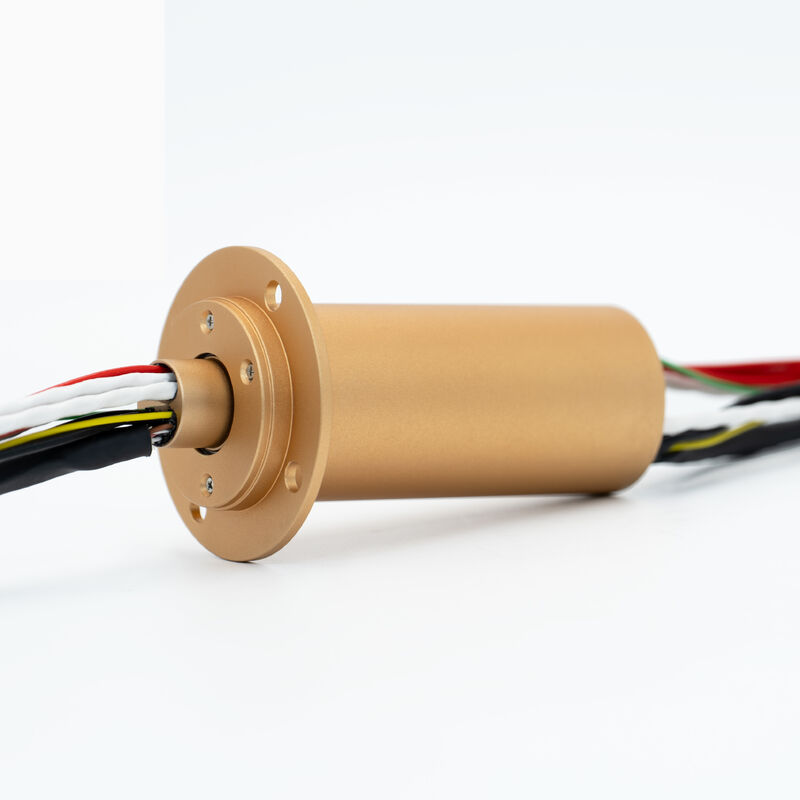

PSR-JC34-120 Miniture Capsule Slip Ring
A miniature slip ring capsule is an electromechanical device that allows the transmission of low power and data from a stationary mechanism to a rotating mechanism. The PSR-JC34-120 provides highly compact packaging to 120 circuits in very small 34mm diameter housing with 113 mm stator length, supports various digital video signals and communication protocols, it is the ideal rotary interface for small systems. Robust structure and high reliability allow it to well suit for demanding operating environments.
Features
• 120 circuits packaged in a self-contained envelope 34 mm diameter and 113 mm stator length
• Up to 300 rpm operation
• Max 10mΩ electrical noise
• Up to 10 Million revolutions lifetime
• Outstanding transmission of Gigabit Ethernet, HD video, Composite video, CAN bus, Discrete and other
signals
• Unique plating techniques and superior materials for high performance and reliability
• Precise, tight packaging capabilities for meeting stringent design criteria
• High reliability, meets military shock and vibration requirements
• Higher power circuits can be combined
• 40, 60 and 80 circuits configurations available
Typical Applications
• Gimballed pitch, roll and yaw axes of inertial navigation systems
• Airborne camera platforms
• Unmanned aerial vehicles (UAV)
| Specification | |
| Circuits | 120 |
| Rating Voltage | 110 VAC / VDC |
| Rating Current | 2A per circuit |
| Insulation Resistance | 200 MΩ @500 VDC |
| Dielectric Strength | 200 VAC @ 50Hz |
| Electric Noise | Max 10mΩ |
| Operating Speed | Max 300 rpm |
| Torque | Max 20 g.cm |
| Lifetime | 10 million revolutions |
| Contact Material | Gold-Gold |
| Housing Material | Aluminum Alloy |
| Lead Wire | 450mm AWG#26Teflon wires |
| Working Temperature | -40℃~ +80℃ |
| Storage Temperature | -45℃~ +85℃ |
| Working Humidity | 95±3%(30℃+5℃) |
| Vibration | MIL-STD-810H |
| Shock | MIL-STD-810H |
| Protection Level | IP51 |
| No | Model No | Rings No | Power(1A)/Signal | Power(5A) | Gbits Ethernet | 3G-SDI | OD | Length |
| 1 | PSR-JC34--60 | 60 | 60 | 34 | 61 | |||
| 2 | PSR-JC34--80 | 80 | 80 | 79 | ||||
| 3 | PSR-JC34--72S1G | 72 | 1 | |||||
| 4 | PSR-JC34--77S-SDI | 77 | 1 | |||||
| 5 | PSR-JC34--69S1G-SDI | 69 | 1 | 1 | ||||
| 6 | PSR-JC34--66S1G-2SDI | 66 | 1 | 2 | ||||
| 7 | PSR-JC34--2P74S | 74 | 2 | |||||
| 8 | PSR-JC34--2P63S1G-SDI | 63 | 2 | 1 | 1 | |||
| 9 | PSR-JC34--120 | 120 | 120 | 113 | ||||
| 10 | PSR-JC34--112S1G | 112 | 1 | |||||
| 11 | PSR-JC34--117S-SDI | 117 | 1 | |||||
| 12 | PSR-JC34--109S1G-SDI | 109 | 1 | 1 | ||||
| 13 | PSR-JC34--106S1G-2SDI | 106 | 1 | 2 | ||||
| 14 | PSR-JC34--2P114S | 114 | 2 | |||||
| 15 | PSR-JC34--2P103S1G-SDI | 103 | 2 | 1 | 1 |
